Xiamen Juda Chemical & Equipment Co., Ltd. is one of the leading manufacturers and suppliers of perfluorinated fluid pfpe for electronics vapour phase soldering in China. If you are looking for perfluorinated fluid pfpe for electronics vapour phase soldering, please be free to buy our quality products at competitive price from our factory. Contact us for quotation.
Perfluorinated Fluid PFPE For Electronics Vapour Phase Soldering email：susan@xmjuda.com
What is vapor phase soldering process?
Vapor phase soldering (VPS) is a soldering process used in electronics manufacturing to attach components to printed circuit boards (PCBs). It is known for its precision, uniformity, and ability to handle complex assemblies.
Perfluorinated Fluid PFPE For Electronics Vapour Phase Soldering

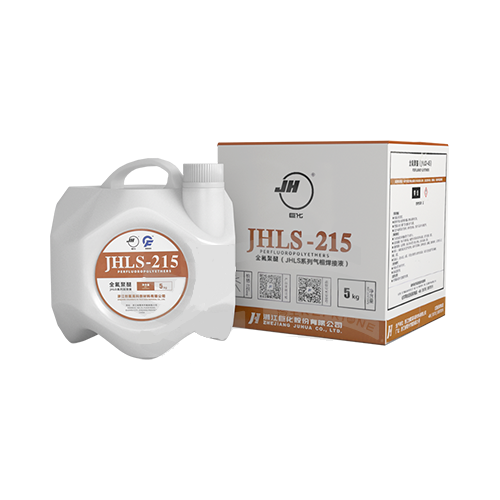

Our product Juhua brand JHLS perfluorinated fluid PFPE is the best choice for vapor phase soldering, as JHLS perfluoropolyether is a high-performance soldering fluid designed for the electronics manufacturing industry and is widely used in the soldering process of precision electronic components. This series of products has excellent chemical stability, thermal stability and insulation properties, which can effectively improve welding quality and reduce welding defects.
Key Components of the vapor phase soldering process email：susan@xmjuda.com
Soldering Fluid: A perfluorinated fluid with a high boiling point is used. This fluid is inert, non-flammable, and environmentally friendly. JHLS perfluorinated fluid PFPE is the best choice, it is same quality as galden perfluorinated fluid.
Vapor Phase Chamber: A sealed chamber where the fluid is heated to create a vapor.
Condensation Zone: The area where the vapor condenses on the PCB, transferring heat to melt the solder.
Cooling Zone: After soldering, the PCB is cooled to solidify the solder joints.
Steps OF the Vapor Phase Soldering Process
email：susan@xmjuda.com
Preparation:
The PCB is prepared with solder paste and components placed in their designated positions.
The soldering fluid JHLS perfluorinated fluid is added to the vapor phase chamber.
Heating:
The perfluorinated fluid JHLS is heated to its boiling point, creating a dense vapor phase within the chamber.
Soldering:
The PCB is lowered into the vapor phase chamber.
The vapor condenses on the PCB and components, uniformly transferring heat and melting the solder paste.
The condensation process ensures even heat distribution, minimizing thermal stress on components.
Cooling:
The PCB is moved to a cooling zone, where the solder solidifies, forming strong and reliable joints.
Recovery:
The vapor condenses back into liquid form and is collected for reuse, making the process efficient and cost-effective.
Factory Tour email：susan@xmjuda.com
Our Advantages email：susan@xmjuda.com
1
20YEARS EXPERIENCE IN FLUORINE CHEMICAL AND EUIQPMENT EXPORT
2
STRONG R&D TEAM TO SUPPORT OEM&ODM SERVICE
3
SUPERIOR QUALITY CONTROL WITH UL,CE,ISO,CCC CERTIFCATION
4
HIGH COST-EFFECTIVE WITH QUALITY GUARANTEE
"Serving the Users,Empowering the Industry" is our mission. We sincerely wish and believe that our professionalism and quality services will satisfy more and more customers to have a long-term and mutual profitable business development.
