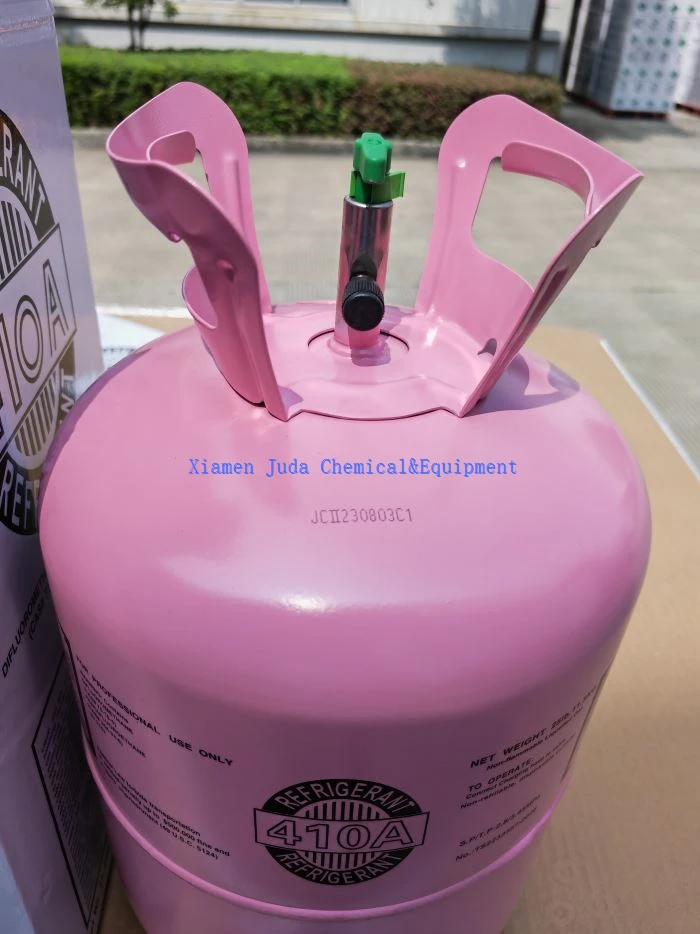

Xiamen Juda Chemical & Equipment Co., Ltd. is one of the leading manufacturers and suppliers of HFC-410A Refrigerant (25 lb) - Technical Overview and Application in HVAC Systems in China. If you are looking for HFC-410A Refrigerant (25 lb) - Technical Overview and Application in HVAC Systems, please be free to buy our quality products at competitive price from our factory. Contact us for quotation.

What Is HFC-410A Refrigerant?

HFC-410A refrigerant is a hydrofluorocarbon blend widely used in modern air conditioning and heat pump systems. It was developed as a high-efficiency alternative to older refrigerants such as R-22, providing improved cooling performance and environmental compliance without contributing to ozone depletion.

The designation "25 lb" typically refers to the standard cylinder charge weight used by HVAC technicians and system manufacturers for residential or commercial split-system applications.

Understanding the Composition and Properties of HFC-410A

HFC-410A is not a single chemical, but a binary refrigerant blend with carefully engineered thermodynamic properties:

Property	Value
Refrigerant Name	HFC-410A
Blend Type	Zeotropic HFC blend
Composition	R-32 (difluoromethane) / R-125 (pentafluoroethane)
Typical Blend Ratio	~50/50 by mass
Boiling Point (at 1 atm)	~−51.6 °C
Ozone Depletion Potential (ODP)	0
Global Warming Potential (GWP, 100 yr)	~2088
Flammability	Non-flammable (ASHRAE A1)
Standard Charge	25 lb (~11.3 kg)

These properties help explain why HFC-410A has become the standard refrigerant for many modern HVAC systems, particularly in environments requiring robust cooling capacity and enhanced thermal transport.

Request R410A MSDS Now

How HFC-410A Works in HVAC Systems

HFC-410A operates within a vapor compression cycle, similar to other refrigerants:

Compression - Low-pressure vapor is compressed to high pressure and temperature.

Condensation - High-pressure refrigerant releases heat and condenses to liquid.

Expansion - Liquid refrigerant sharply drops in pressure through an expansion valve.

Evaporation - Refrigerant absorbs heat from the indoor environment, cooling the air.

The unique blend ratio of HFC-410A enhances its ability to transfer heat efficiently across this cycle, particularly under high-load conditions typical of residential and commercial air conditioning.

Typical Applications of HFC-410A Refrigerant

Residential and Commercial HVAC

Central air conditioning systems

Heat pumps

Packaged HVAC units

Ducted split systems

New System Installations

HFC-410A is predominantly used in newly manufactured comfort cooling systems, especially where older HCFC refrigerants have been phased out due to environmental regulations.

Retrofit Considerations

HFC-410A is not a drop-in replacement for R-22 systems due to differences in operating pressure and lubricant compatibility. Retrofits typically require component adjustments.

Safety, Handling, and Environmental Considerations

Safety Profile

Non-flammable and non-toxic (ASHRAE A1 classification).

Standard handling procedures involve protective gear and leak detection.

Storage and Transport

Store cylinders upright in ventilated areas.

Avoid heat sources and direct sunlight.

Always secure cylinders during transport.

Environmental Awareness

While HFC-410A does not deplete the ozone layer, it has a moderate global warming potential (GWP) compared to newer low-GWP refrigerants. Regulatory trends are shifting toward ultra-low GWP alternatives (e.g., R-32, R-454B). However, HFC-410A remains in widespread use due to system compatibility and performance.

FAQ - HFC-410A Refrigerant

Q: Can HFC-410A be used in older R-22 systems?
A: No. Due to higher operating pressures and oil incompatibilities, HFC-410A must be used in systems specifically designed for it.

Q: Is HFC-410A safe to handle?
A: Yes. HFC-410A is non-flammable and non-toxic under normal conditions. Standard protective equipment and leak testing are recommended.

Q: What's the difference between R-410A and R-22?
A: R-410A has zero ozone depletion potential and operates at higher pressures, offering superior heat transfer performance compared to R-22, which is being phased out globally.

Q: Are there environmental alternatives to HFC-410A?
A: Yes. Lower-GWP refrigerants such as R-32 and some A2L refrigerants are emerging alternatives. However, HFC-410A remains in widespread use where system compatibility is required.
