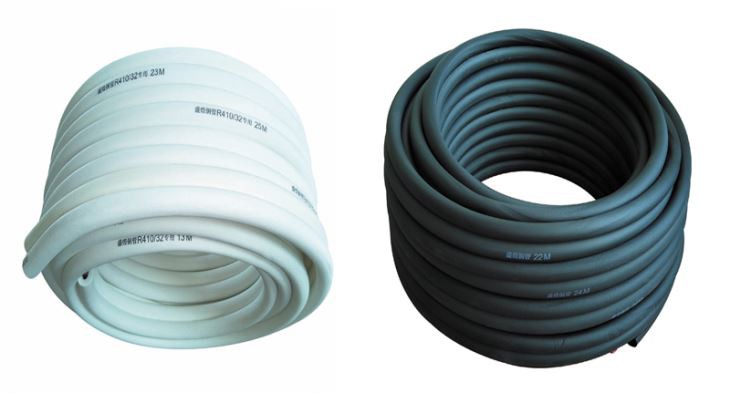

Pair Aircon Copper Tube

Pair Aircon Copper Tube

Summary: Insulated copper tube for ac consists of seamless copper tube (Cu-DHP) with high quality insulation layer widely used for the installation of split air conditioners and refrigeration equipments. AC Copper Pipe Sizes Available: Features: In accordance with the certifications of copper...

Description

Xiamen Juda Chemical & Equipment Co., Ltd. is one of the leading manufacturers and suppliers of pair aircon copper tube in China. If you are looking for pair aircon copper tube, please be free to buy our quality products at competitive price from our factory. Contact us for quotation.



Pre insulated Copper Tubing



Summary:

Pre insulated Copper Tubing for steam supply, condensate return, or other unheated fluid or gas transport, this copper tubing is non-flared.


air conditioner pipe.jpg

PE-001

Embossed Crosslinked PE


AC rubber tubing.jpg

RB-002

Rubber

 AC Copper Pipe Sizes Available:

Type

Spec.

Copper Pipe Sizes (mm)

Copper Pipe Insulation Sizes (mm)

Length(m)

Copper Pipe OD

Copper Pipe Wall Thickness

I.D.

Pipe Insulation Thickness

1 HP

1/4"

Φ6.35

0.5

Φ8.0

8, 9, 10, 12, 13, 15

3, 4, 5, 6 or on request

3/8"

Φ9.52

0.6

Φ12.0

2 HP

1/4"

Φ6.35

0.5

Φ8.0

1/2"

Φ12.70

0.6

Φ14.5

2.5HP

1/4"

Φ6.35

0.5

Φ8.0

5/8"

Φ15.88

0.75

Φ18.0

3 HP

3/8"

Φ9.52

0.6

Φ12.0

5/8"

Φ15.88

0.75

Φ18.0

4 HP

3/8"

Φ9.52

0.6

Φ12.0

3/4"

Φ19.05

0.8

Φ22.0

5 HP

1/2"

Φ12.70

0.6

Φ14.5

3/4"

Φ19.05

0.8

Φ22.0


 Features:

   Copper Pipe

In accordance with the certifications of copper tube and insulation material as below:


Copper   Tube/Pipe

Insulation   Layer

Japan

JIS H3300:2006   C1220T

JISA9511   2009A-PE-C-2 PEF8/JCDA009

Australia

AS/NZS 1571

AS/NZS 1530.3

U.S.A.

ASTM B280-13

UI94 HF-1

Europe

EN 12735-1

EN1350-7   BL-s1-d0

France

EN 12735-1

EN1350-1 M1

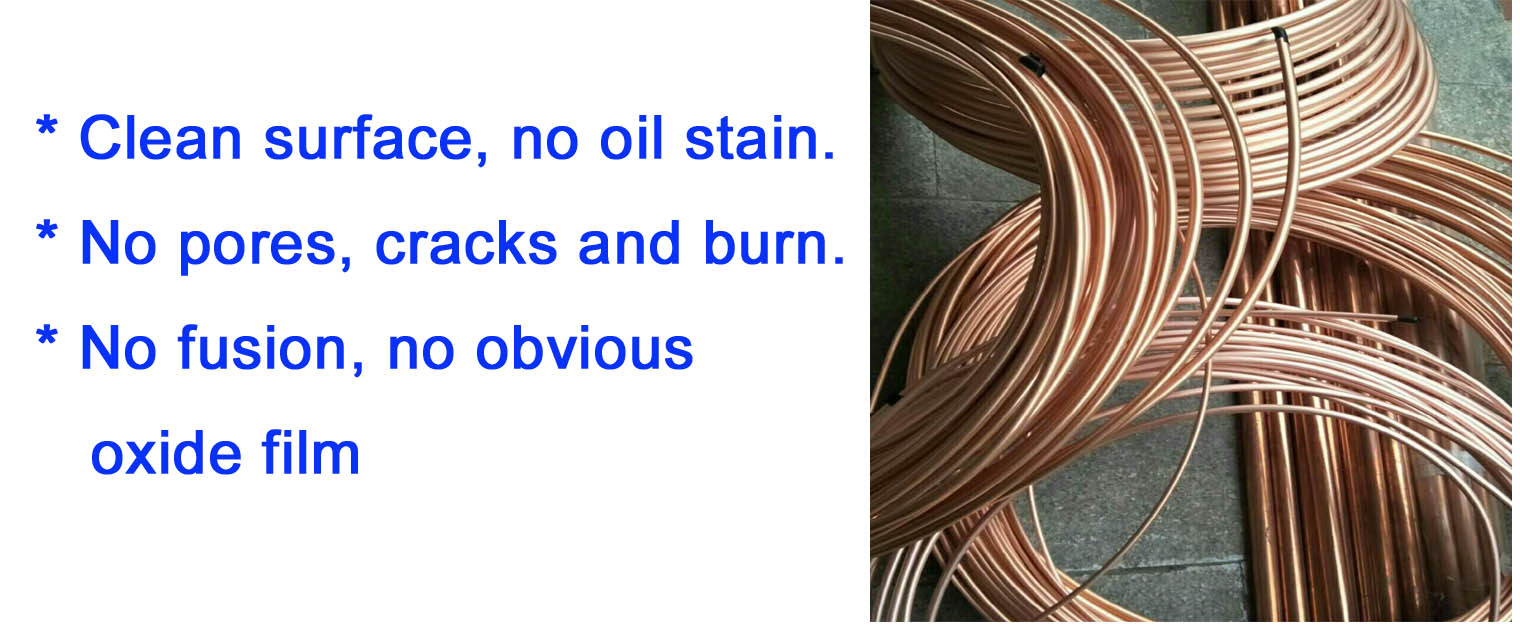

ac copper lines.jpg



   Air conditioner copper pipe insulation:

Hallow Section.jpg

    1. Function:

aircon copper tubing.jpg

Upgrade Working Efficiency, and improved Installation Efficiency

Easy to bend and cut, Pair/Twin coil (PC & SPH) can easily be separated by hand. No tools or cutting are necessary.

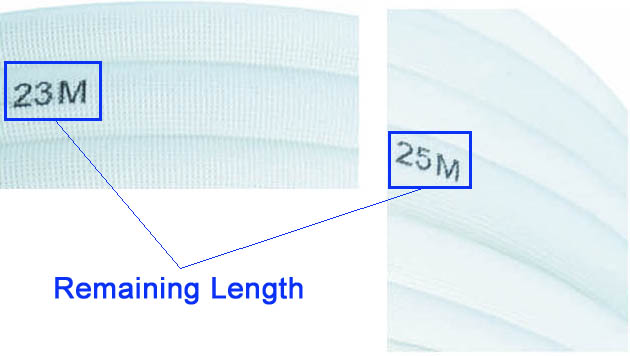

2. Length Markings

copper pipe lengths.jpg

Consecutively numbered length markings are clearly printed on insulation surface at 1 meter intervals to indicate remaining length, or as per customer’s requirement.


Packaging & Delivery:

Packaging Details: 1pc / PVC + Pizza box, or as per customer’s requirement.

Delivery:

l  Regular size needs 1-3days.

l  Specials size according to the quantity of orders.
